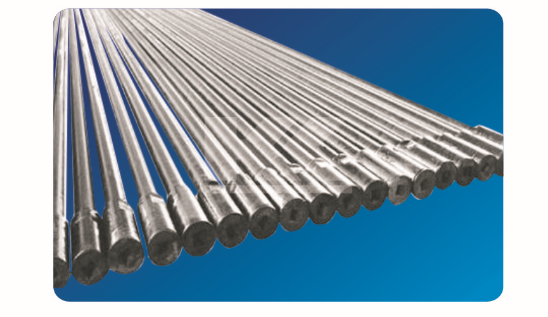

Hollow Sucker Rod

Introduction

Hollow sucker rod is especially suitable for heavy oil wells, sand wells and well that need continuous medium injection. We often use direct hollow sucker rod, and the rod end is friction welded with rod body. All rods are heat treated in quenching and tempering process to get grade D performance.

Construction Feactures

Hollow sucker rod can allow medium injection, like hot oil, hot water and gas, into the channel, which can reduce oil viscosity and remove wax. Oil output speed will be increased by improving its flow ability of sand and mechanical waste from channel. It will reduce max load for polished rod and decrease the repair frequency.

Mechanical Property

Grade		Material	Yield	Tensile Strength	Elongation	Reduction of Area	Surface Hardness HRC	Base
			Strength	(MPa)	A (%)	Z(%)		Hardness
			(MPa)
C		Carbon or alloy steel	≥415	620-795	≥13	≥50	--	--
D		Carbon or alloy steel	≥590	795-965	≥10	≥48	--	--
H	HL	alloy steel	≥795	965-1195	≥10	≥45	--	--
H	HY	alloy steel	--	965-1195	--	--	≥42	≥224
Note: 1.）Tensile test sample can be GB/T 228.1 ration sample.
2.）The Material normally is AISI 4135.

Technical Parameters

Nominal Size	KGW32	KGW34	KGW36	KGW38	KGW40	KGW42	KGW46
Rod Body Dia.(in.)	32	34	36	38	40	42	46
Rod Wall Thickness(mm)	5	5.5	5.5, 6	5.5, 6	5.5, 6	5, 5.5, 6	5, 5.5, 6
Thread Nominal Size(in.)	1-7/16”	1-9/16”	1-9/16”	1-3/4”	1-7/8”	1-7/8”	1-7/8”
Rod Length(ft)	25’ , 30’
Pony Rod Length(ft)	2’ ~ 10’
