Pump for Deviated Well

The pump is a new special sucker rod pump especially for deviated well. Upper and lower travelling valves and standing valve are specially designed to act as centralizer and guide, which can force the valve ball shutdown timely.

Category:

Sucker Rod Pump

Keywords:

TEL：

Email：

Pump for Deviated Well

Introduction

And valve ball close lag and valve ball partial fall problems in the deviated wells have been solved, and the service life and pump efficiency has been improved.

Be applicable to the directional well and highly-deviated well deviated below 60°.

Be applicable to the shallow and medium deep well with high output.

All the plunger assembly materials are stainless steel suitable for corrosion well.

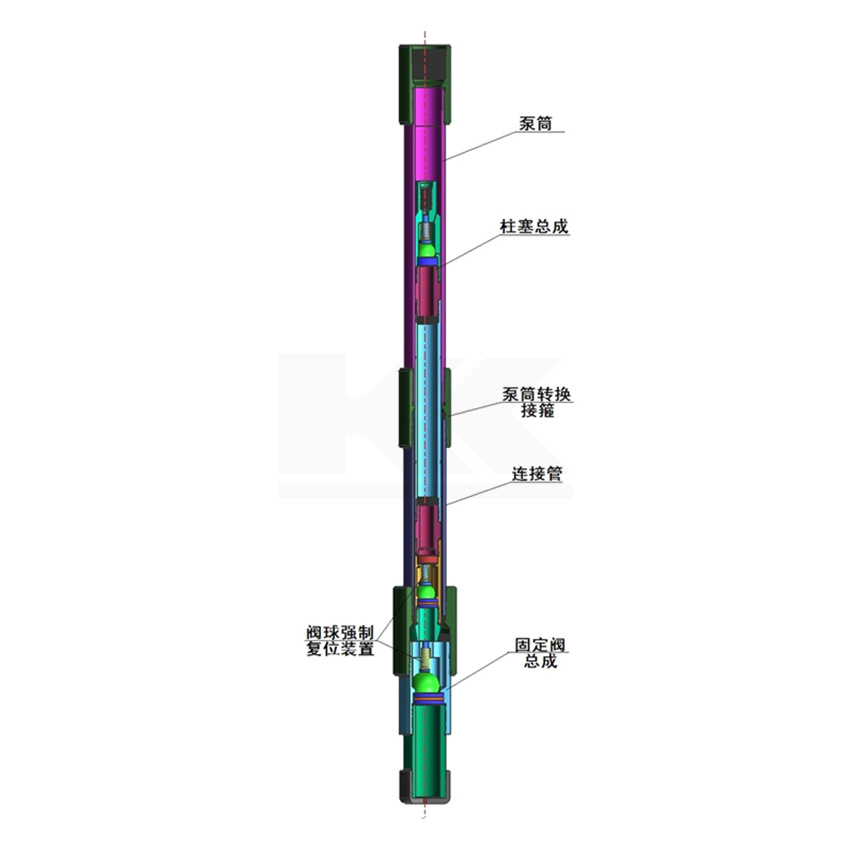

Working Principle

1) When up-stroking, the cavity space in the lower barrel is increased and the pressure is reduced, thus the travelling valve is quickly closed under the force of the reset spring. At the same time, the standing valve is open by overcoming the spring force, and well fluid flows into tubing. Meanwhile, well fluid is forced into barrel bottom from standing valve by the pressure pump inlet.

2) When down-stroking, the cavity space in the lower barrel is decreased and the pressure is increased, thus the standing valve is quickly closed under the force of the reset spring. At the same time, the travelling valve is automatically opened by self-weight of the valve ball and overcoming the spring force, the well fluid bottom barrel flows into top barrel through plunger bore.

Technical Parameters

Nominal Diameter	Stroke Length	Barrel Length	Plunger Length	THD size		Max O.D.	Pump Constant
				Tubing THD	Sucker Rod THD
Φ31.75	1.8-8.0	3.3-12m	1.2m	27/8″NU	3/4″	Ф88.9	1.14
Φ38.1	1.8-8.0						1.64
φ44.45	1.8-8.0						2.19
φ57.15	1.8-8.0						3.69
Φ69.85	1.8-8.0			31/2″NU	7/8″	Ф108	5.54
Note: The upper and lower tubing thread can be supplied as per customers’ requirement.
