V-shaped Plug-in Drive Rod
Introduction

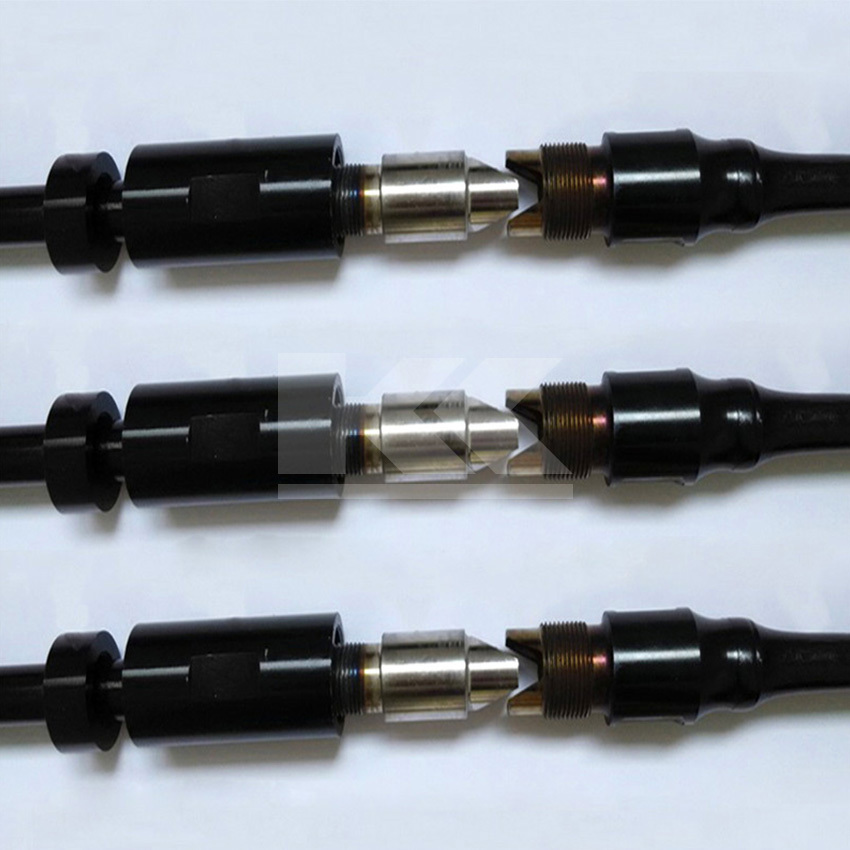

The drive rod is with structure of V-shaped plug, making sure that the rod ends have better strength to bear high torque. The thread is only for connecting and achieve the aim of anti-break.
Mechanical Property
|
等级Grade
|
抗拉强度Rm
|
屈服强度Rel
|
伸长率A
|
端面收
|
|
Mpa
|
(0.2%的残余变形）
|
200mm%
|
缩率Z%
|
|
|
Tensile Strength
|
Yield Strength
|
Elongation
|
Reduction of area
|
|
|
HL
|
965-1195
|
≥793
|
≥10
|
≥45
|
Technical Parameters
|
规格Spec
|
杆体直径mm
Rod Dia. |
大端螺纹in
Large End Thread |
小端螺纹in
Small End Thread |
最大外径mm
Max O.D. |
推荐扭矩
Recommended Torque N·m |
|
LCYG 3/4 HL C
|
19.05
|
1
|
3/4
|
46
|
≥800
|
|
LCYG 7/8 HL C
|
22.23
|
1 1/8
|
7/8
|
50.8
|
≥1200
|
|
LCYG 1 HL C
|
25.4
|
1 1/8
|
7/8
|
50.8
|
≥1800
|
|
LCYG 1 1/8 HL C
|
28.6
|
1 7/8
|
1 7/16
|
60.33
|
≥2900
|
