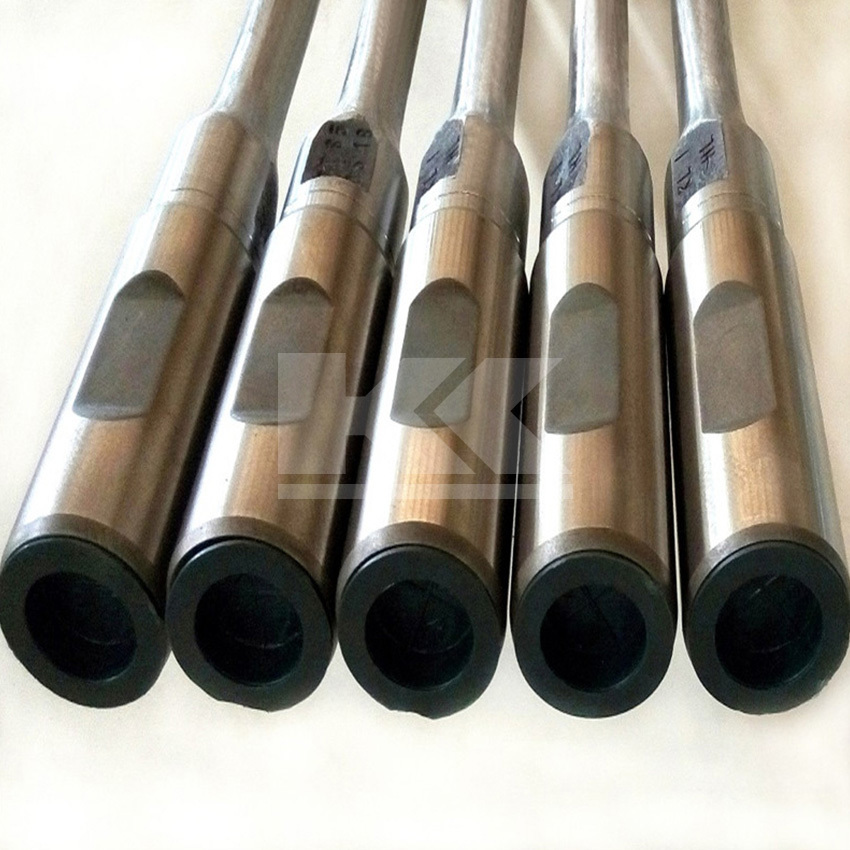

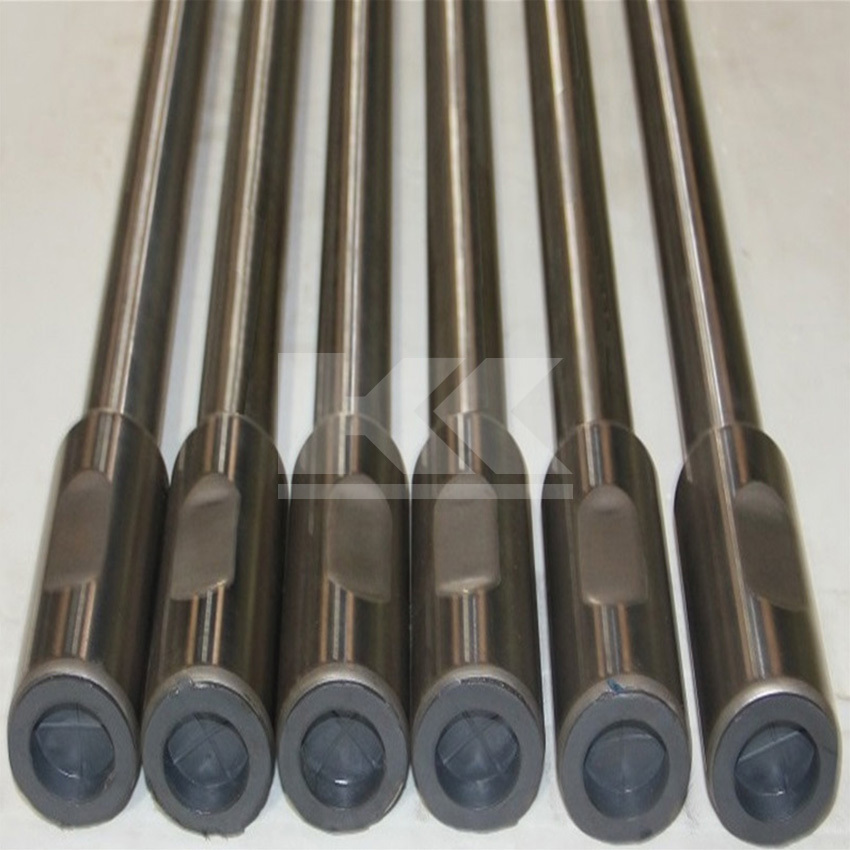

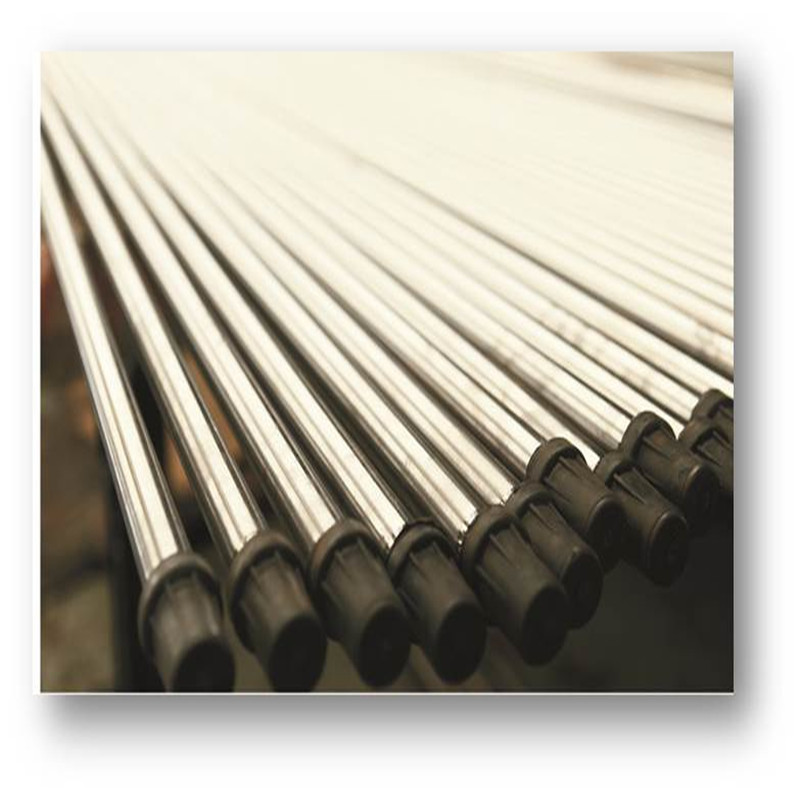

Spray Metal Polished Rod
Introduction
Spray metal polished rod has good mechanical properties and strong corrosion resistance. The surface coating is combined with the base material firmly.There is no peeling and cracking, which solves the problems of requirement of high strength and anti-corrosion performance.
The surface of spray metal polished rodhas a dense nickel alloy anti-corrosion layer after spray metal, has strong anti- wear and anti-corrosion properties, which can effectively avoid the coating peeling problem caused by friction between the rod and tubing.
Mechanical Property
|
级别Grade
|
HL
|
HY
|
|
抗拉强度Rm
Tensile Strength |
965～1195MPa
|
965～1195MPa
|
|
屈服强度Rel
Yield Strength |
≥793MPa
|
/
|
|
断面收缩率Z
Reduction of area |
≥45%
|
/
|
|
延伸率A（200mm）
Elongation |
≥10%
|
/
|
|
表面硬度
Surface Hardness |
/
|
≥42 HRC
|
|
芯部硬度
Base Hardness |
/
|
≥20 HRC
|
|
淬硬层厚度
The thickness of hardening layer |
/
|
杆体直径的5%～13%
|
Technical Parameters
|
规格Spec
|
级别Grade
|
杆体直径（mm）
Rod Dia. |
镦粗端螺纹直径Dr（in）
Upsetting End Thread Dia. |
未镦粗端螺纹名义直径DT1（in）
Non-upsetting End Thread Nominal Dia. |
匹配抽油杆
Sucker Rod （mm） |
长度L（mm）
Length |
|
22(7/8＂)
|
HL/HY
|
22.23
|
3/4 SR
|
M20
|
22（7/8＂）
|
7620
8000 9140 10000 11000 12000 |
|
25(1＂)
|
HL/HY
|
25.4
|
7/8 SR
|
5/8 SR
|
22（7/8＂）
|
|
|
29(1 1/8＂)
|
HL/HY
|
28.58
|
1 SR
|
3/4 SR
|
25（1＂）
|
|
|
32(1 1/4＂)
|
HL/HY
|
31.75
|
/
|
7/8 PR
|
29（1 1/8＂）
|
|
|
38(1 1/2＂)
|
HL/HY
|
38.1
|
/
|
1 PR
|
29（1 1/8＂）
|
