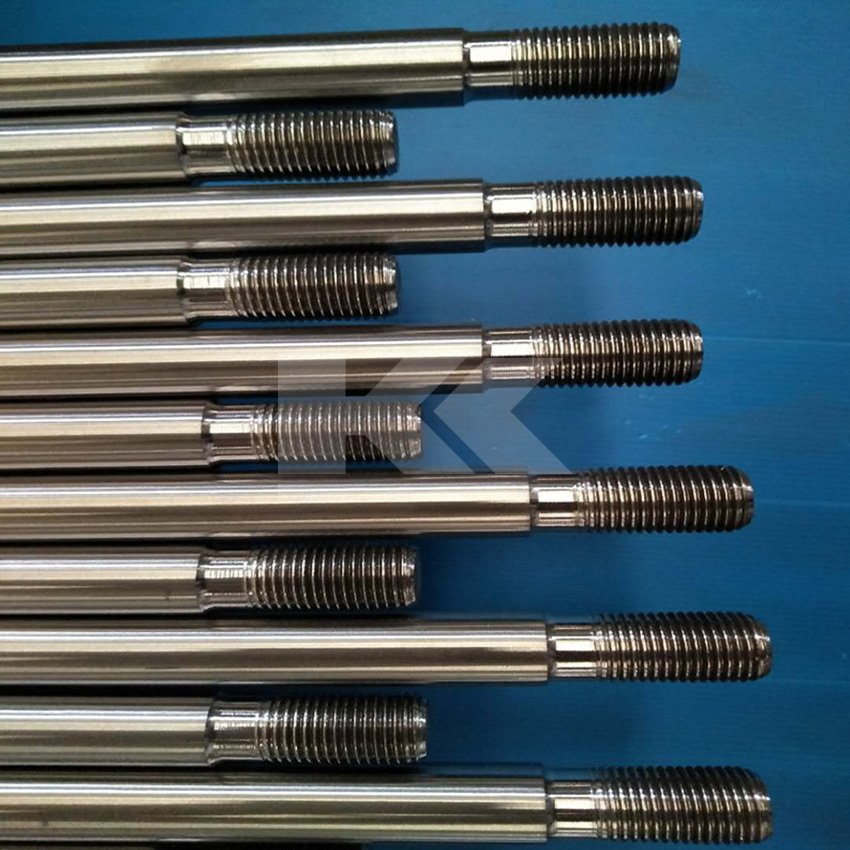

Anti-break Polished Rod
Introduction
Ｐolished rod is mainly applicable to deviated well, horizontal well and heavy oil well. Due to the large contact force between sucker rod and tubing, the downward oil has high resistance, it often makes sucker rod difficult to move downwards. The combination of the anti-break polished rod and the anti-break sucker rod can solve the break off of rod string caused by alternating torque.
Mechanical Property
|
级别 Grade
|
HL
|
HY
|
|
抗拉强度
Tensile Strength Rm |
965～1195MPa
|
965～1195MPa
|
|
屈服强度
lYield Strength Re |
≥793MPa
|
/
|
|
断面收缩率
Reduction of area Z |
≥45%
|
/
|
|
延伸率
Elongation A（200mm） |
≥10%
|
/
|
|
表面硬度
Surface Hardness |
/
|
≥42 HRC
|
|
芯部硬度
Base Hardness |
/
|
≥20 HRC
|
|
淬硬层厚度
The Thickness of hardening layer |
/
|
5%～13% of Rod Dia.
|
Technical Parameters
|
规格Spec
|
杆体直(mm)
Rod Dia. |
螺纹名义直径（in）
Thread Nominal Dia. |
螺纹直径(mm)
Thread Dia. |
长度L(mm)
Length |
|
38
|
38
|
3/4"
|
26.99
|
6000
7620 8000 9140 |
|
7/8"
|
30.16
|
|||
|
1"
|
34.89
|
