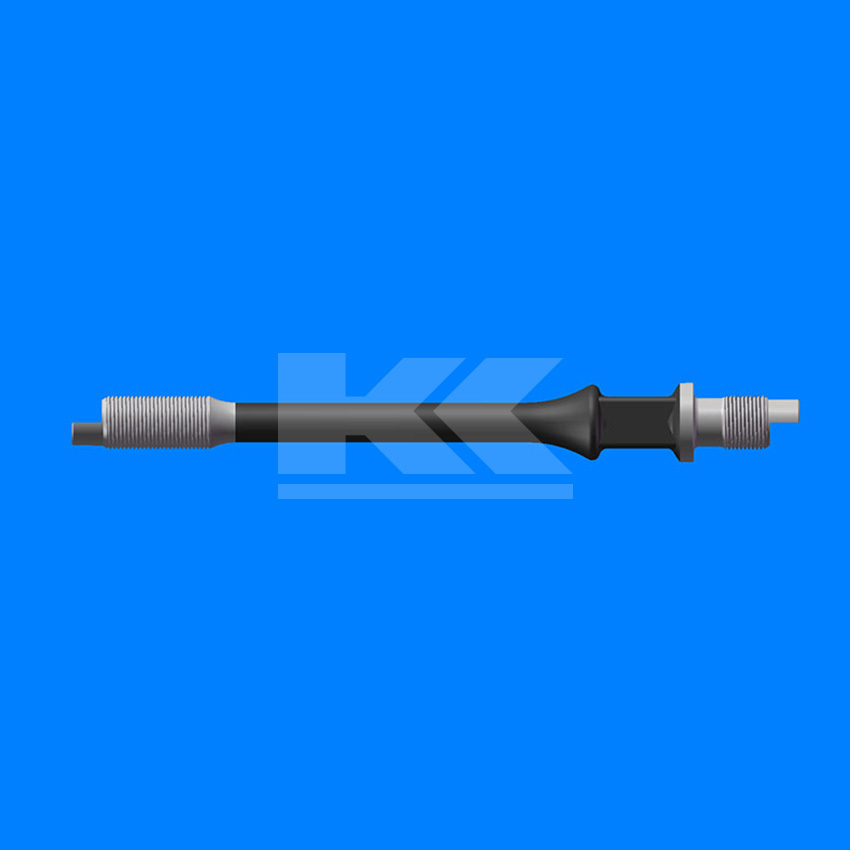

Anti-break Sucker Rod
Introduction
Anti-break sucker rod is applicable to deviated well, horizontal well and heavy oil well. Due to the large contact force between sucker rod and tubing, the downward oil has high resistance, it often makes sucker rod difficult to move downwards. The combination of the anti-break sucker rod and the anti-break polished rod can solve the tripping problem of rod string caused by alternating torque.
Mechanical Property
|
级别Grade
|
D
|
KD
|
HL
|
HY
|
|
抗拉强度
Tensile Strength Rm |
793～965MPa
|
793～965MPa
|
965～1195MPa
|
965～1195MPa
|
|
屈服强度
Yield Strength Rel |
≥586MPa
|
≥586MPa
|
≥793MPa
|
/
|
|
断面收缩率
Reduction of area Z |
≥50%
|
≥50%
|
≥45%
|
/
|
|
延伸率
Elongation A（200mm） |
≥10%
|
≥10%
|
≥10%
|
/
|
|
表面硬度
Surface Hardness |
/
|
/
|
/
|
≥42 HRC
|
|
芯部硬度
Base Hardness |
/
|
/
|
/
|
≥20 HRC
|
|
淬硬层厚度
The thickness of hardening layer |
/
|
/
|
/
|
5%～13% of Rod Dia.
|
Technical Parameters
|
规格（in）
Spec |
杆体直径（mm）
Rod Dia. |
螺纹名义直径（in）
Thread Nominal Dia. |
螺纹直径(mm)
Thread Dia. |
接箍外径（mm）Coupling O.D.
|
名义长度（mm）
Nominal Length |
||
|
足尺FS
|
小井眼SH
|
长杆Sucker Rod
|
短节Pony Rod
|
||||
|
CYG19(3/4＂)
|
19.05
|
1 1/16
|
26.99
|
41.28
|
38.1
|
7620
8000 9000 9140 |
500
1000 1500 2000 3000 |
|
CYG22(7/8＂)
|
22.23
|
1 3/16
|
30.16
|
46
|
41.3
|
||
|
CYG25(1＂)
|
25.4
|
1 3/8
|
34.89
|
55.6
|
50.8
|
||
