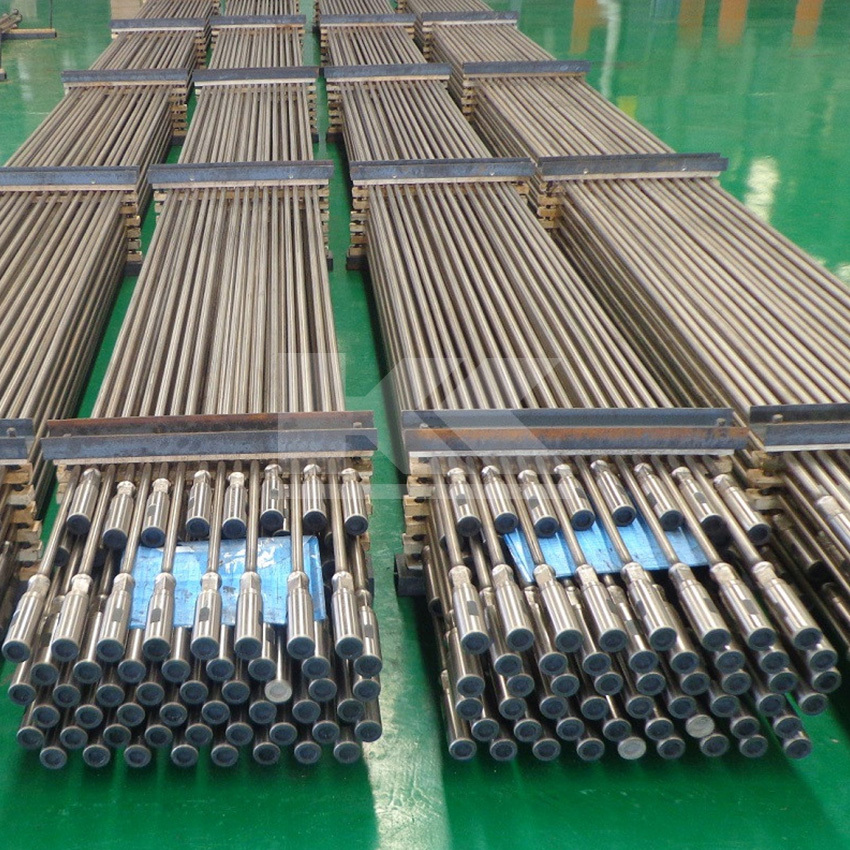

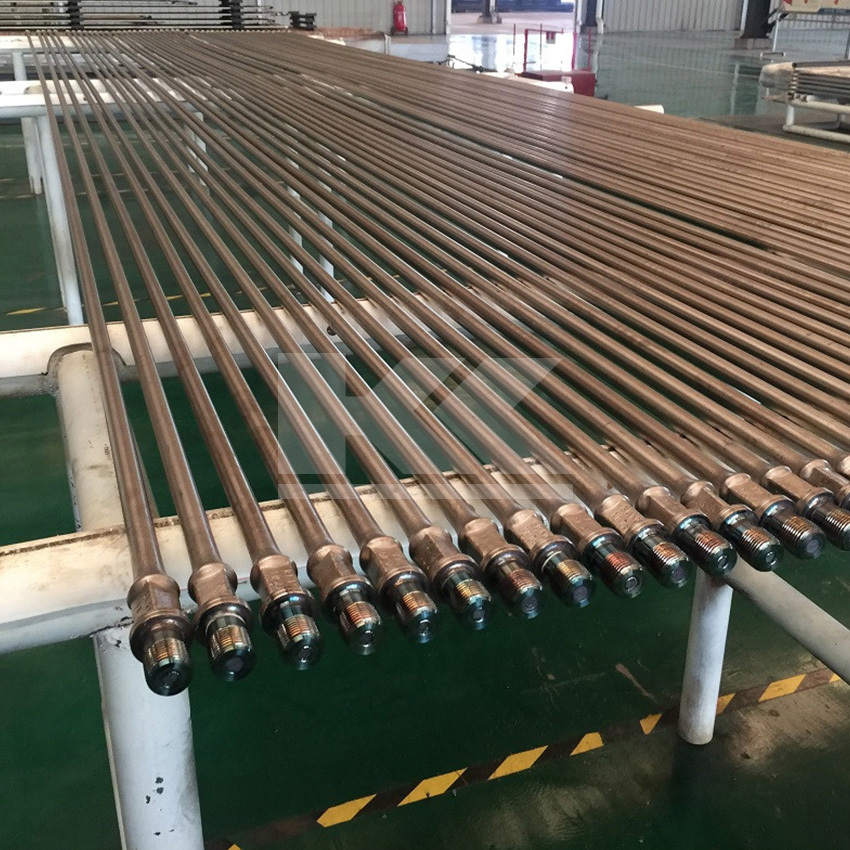

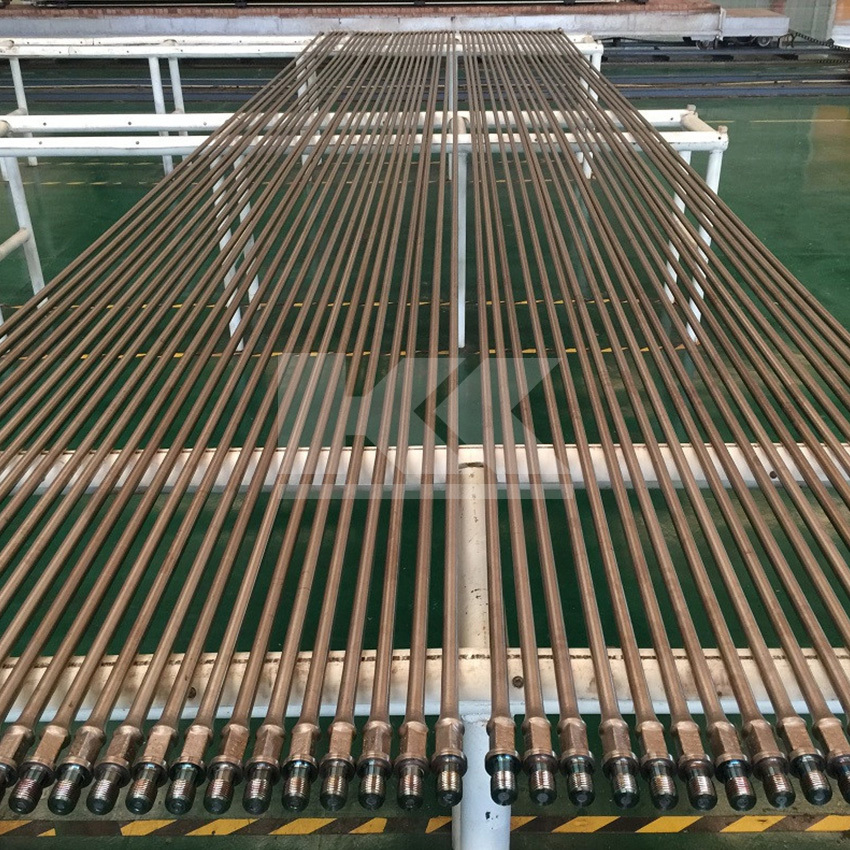

Tungsten Plated Sucker Rod
Introduction
It adopts the tungsten plated process with multicomponent alloy of tungsten, nickel and phosphorus. The thickness of tungsten alloy layer is 0.04-0.06mm, hardness is 580-750HV.The layer is high strength and crack free and dense. Compared with unit or binary electroplating, our process can ensure higher plating adhesive strength, higher hardness, better wear resistance and anti-corrosion performance. It has high finish and can effectively solve eccentric wear of sucker rod surface. It’s mainly applicable to oilfield with corrosion and has excellent corrosion resistance under electrochemical corrosion, H2S and CO2 condition, significantly prolong the service life of rod string.
Mechanical Property
|
等级 Grade
|
D级
|
HL级
|
|
抗拉强度
Tensile Strength Rm |
793～965MPa
|
965～1195MPa
|
|
屈服强度
Yield Strength Rel |
≥586MPa
|
≥793MPa
|
|
断面收缩率
Reduction of area Z |
≥50%
|
≥45%
|
|
延伸率
Elongation A（200mm） |
≥10%
|
≥10%
|
|
夏比冲击功
Charpy Impact J |
≥60
|
≥60
|
Technical Parameters
|
规格
Spec (in) |
杆体直径
Rod Dia. （mm） |
螺纹名义直径
Thread Nominal Dia. （in） |
螺纹直径
Thread Dia. (mm) |
接箍外径
Coupling O.D. （mm） |
名义长度
Nominal Length （mm） |
||
|
足尺
|
小井眼
|
长杆
|
短节
|
||||
|
FS
|
SH
|
Sucker Rod
|
Pony Rod
|
||||
|
CYG16(5/8＂)
|
15.88
|
15/16
|
23.81
|
38.1
|
31.8
|
7620
8000 9000 9140 |
500
1000 1500 2000 3000 |
|
CYG19(3/4＂)
|
19.05
|
1 1/16
|
26.99
|
41.28
|
38.1
|
||
|
CYG22(7/8＂)
|
22.23
|
1 3/16
|
30.16
|
46
|
41.3
|
||
|
CYG25(1＂)
|
25.4
|
1 3/8
|
34.93
|
55.6
|
50.8
|
||
|
CYG29(1 1/8＂)
|
28.58
|
1 9/16
|
39.69
|
60.3
|
/
|
||
